3 Years warranty die cast aluminum cabinet IndoorRental LED Display Screen Stage Events Party Wedding Activities
.
Indoor Outdoor rental led module display panel p2.5 p3.91 p4.81 p5.95 p6.25 p7.81 p8 p10

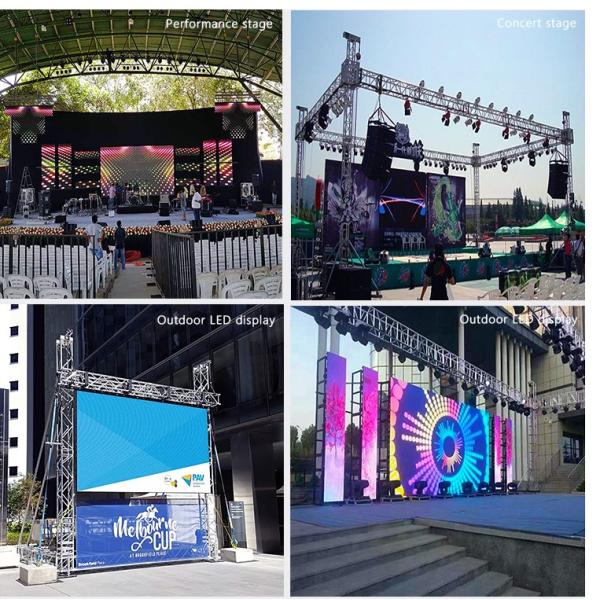

led stage screen p1.5 p2 p3 p4 p5 p6 p7 p8 p10 ultra slim led screen for concert, party, wedding...
With high refresh rate, high brightness, and fast assembling.
With waterproof, light & thin, and good heat dissipation.
Warranty for 5 years . no dead lamp and long time working hours .
The detailed specification as follows.
| Unit Module | Item: | Technical Parameter |
| Model: | PH4.8mm outdoor LED module |
| Pixel Pitch: | 4.81mm |
| Pixel configuration: | 3in1 (1R1G1B) |
| Module Size: | 250*250mm |
| Module Resolution: | W52XH52dots |
| Module Thickness: | 11mm |
| Module Weight: | 0.5KG |
| Package LED mode: | SMD2727 |
| Max Power: | 20W |
| Pixel Density: | 42849 dots/SQM |
| Driving Method: | Constant Current Driving |
| Scan Method: | 1/13 scan |
| Interface Way: | HUB 75 |
| Brightness: | ≥ 5000CD/SQM |
| Unit Cabinet | Cabinet Size: | 500*500mm/500*1000mm(Customize) |
| Cabinet Composing: | 4pcs |
| Power Supply Mode: | 5V/40A |
| Cabinet Resolution: | 104*104dots |
| Optimal Viewing Distance: | 4.8-240M (according to the big screen size) |
| Optimal Viewing Angle: | Horizontal angle: 160 degree; Vertical angle: 120 degree |
| Environment Temperature: | Storage: -40 degree ~ +85 degree Work: -20 degree ~ +60 degree |
| Relative Humidity: | 10% ~ 95% |
| Power | Operating Voltage: | AC:100V~120V AC:220~240V |
| Average Power: | ≤220W/SQM |
| Max Power Consumption: | ≤500W/SQM |
| Control System | Computer: | Pentium4 or I3 or above |
| Operate System: | Win98/2000/XP/Win 7/Win10 |
| Control Mode: | Synchronization with PC |
| Main Technical Parameter | Driving Device: | IC Constant Current Driving |
| Refresh Rate: | ≥ 2800Hz |
| Gray/Color: | RGB each 256 grade, can display 16.7color |
| MTPF: | ≥ 9000hours |
| Power Switch: | Automatic Switch |
| Display Mode: | 1920*10801024*7681280*960 |
| Product Name | | | | | | | |
| Module size | | |
| Color | |
| Brightness | |
| Refresh rate | |
| Pixel Density | | | | | | | |
| Working Voltage | |
| Display Weight | | | | | | | |
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: It Depend on the sample type, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below.
